Zinc Sheet
For Quality & Trust
Cutting Edge Products
ReynoArch Zinc Composite Panels (ZCP) represent a sophisticated blend of natural zinc aesthetics and advanced composite technology. Backed by over two decades of façade innovation, ReynoArch introduces the Zinc Sheet Era — combining timeless elegance with exceptional durability.
Zinc Composite Panels are highly resistant to corrosion and environmental exposure. Zinc naturally develops a protective patina layer, enhancing longevity while maintaining its architectural appeal. This self-protective property makes ZCP an ideal solution for contemporary façade applications.
ZCP integrates the natural beauty of zinc with the structural flatness, strength, and fabrication ease associated with composite panel technology. Suitable for both traditional and modern architectural styles, it adapts seamlessly to diverse design concepts.
Reynoarch has 2 types of Zinc Composite Panels:

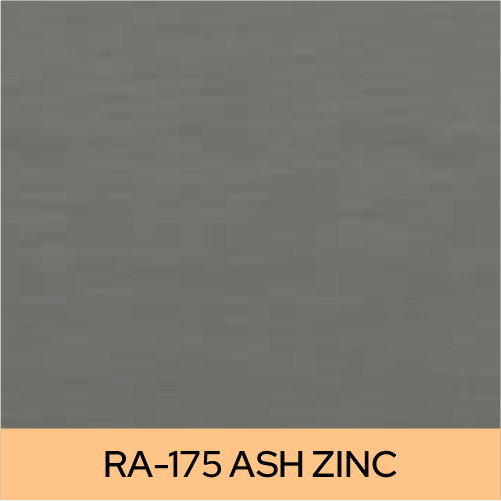

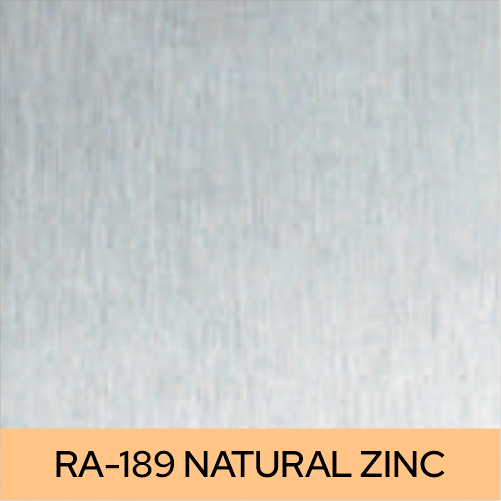

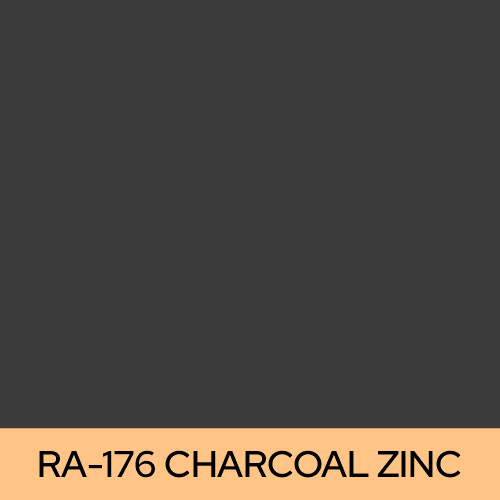

- Natural Colors like Natural Zinc, Charcoal Zinc, Ash Zinc
- Pigmented Colors like Red Zinc, Gold Zinc,Blue Zinc, Green Zinc, Brown Zinc, Crystal Zinc and Olive Zinc
Areas of Application

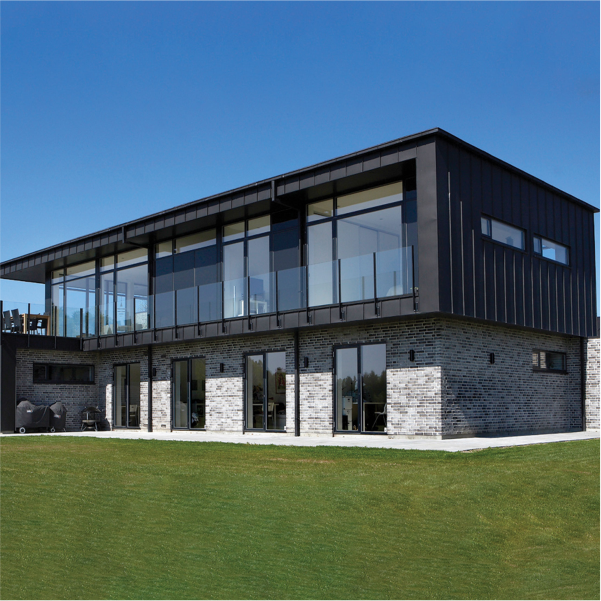

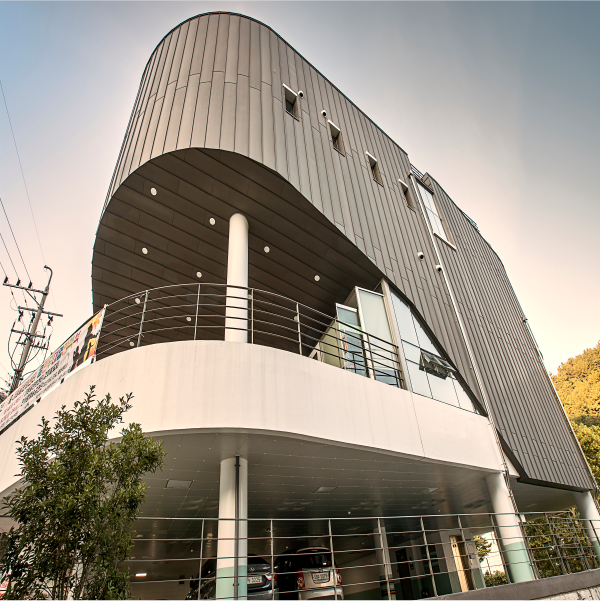

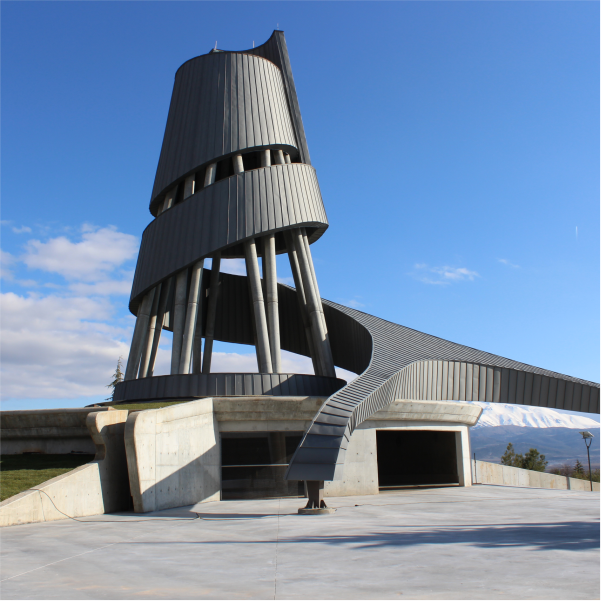

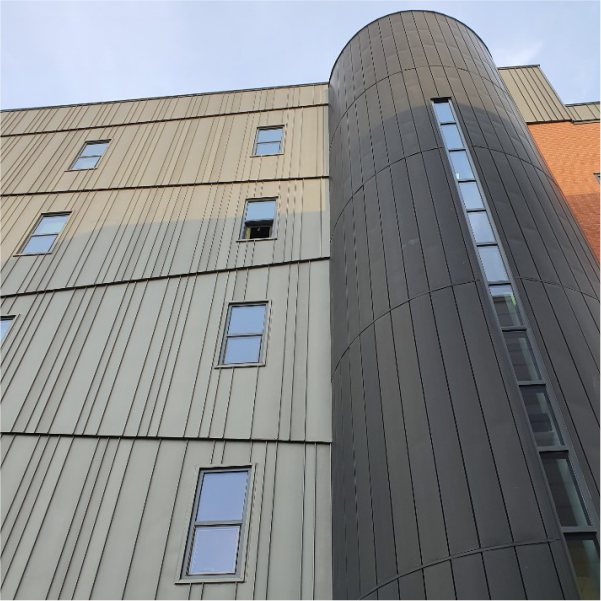

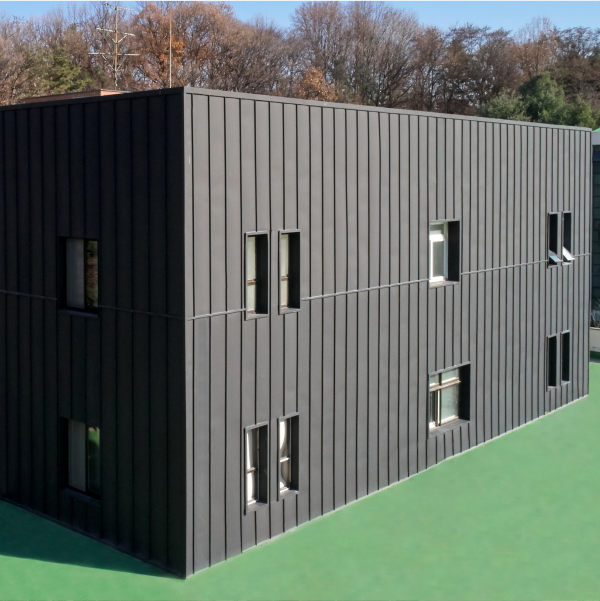

- Exterior façade cladding

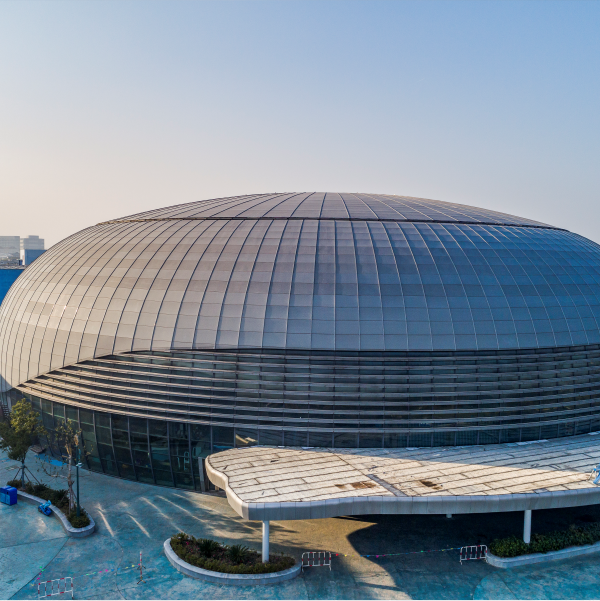

- Auditoriums and airports

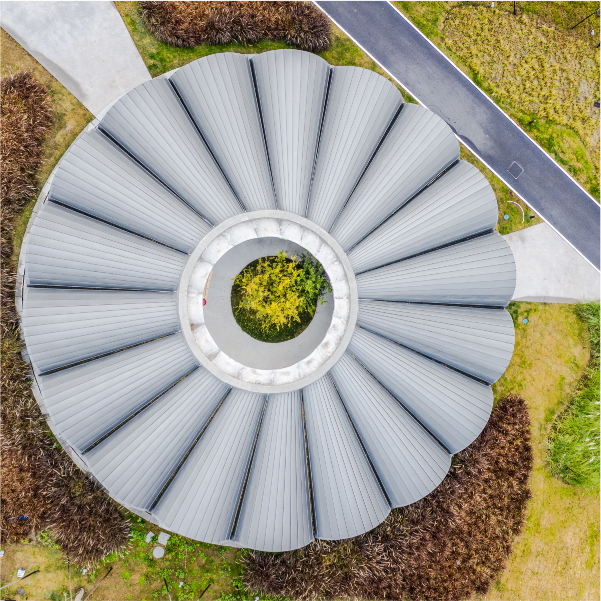

- Roofing systems
- Rainwater storage systems
- Commercial establishments
- Institutional buildings
ZCP panels can be fabricated using similar equipment as ACP panels and installed using stainless steel, aluminium, or galvanized fasteners.
Key Features
- Can Last For 100* Years
- Self Healing Properties
- Superior flatness and structural strength
- Natural zinc aesthetic appeal
- Corrosion-resistant and anti-rust
- Fungistatic properties (resists mildew and mold growth)
- Recyclable and environmentally responsible
- Customisable fabrication options
- Fire-resistant modifications available
Technical Specifications
| Overall Thickness | 3mm and 4mm |
| Panel Sizes | 1220mm X 2440mm, 1220mm X 3050mm, 1220mm X 3660mm |
| Coil Thickness | 0.50 mm |
| Core | LDPE + HDPE Polymer , FR core also available on request |
| Coating | Uncoated Natural Zinc or PVDF on Pigmented Zinc Colors |
| Application | Commercial Establishments |
FAQ's
Zinc Composite Panels are made by chemically attaching sheets of zinc, and a ‘core’ material provides structural and dimensional stability to the panels. As a result of this blending of composite construction with the naturally elegant beauty of zinc, these panels offer both durability and low weight. They can be used in both outdoor and indoor applications.
A Zinc Composite Panel provides an extended service life together with excellent protection against rust, environmental damage, and waterproof capabilities. The smooth surface that zinc creates is extremely durable and can be reused and recycled, making zinc very eco-friendly. For all environments that require the least amount of maintenance, the panel can provide an excellent option for all exterior applications.
A Zinc Composite Panel provides durable performance through its extended lifespan, its excellent protection against rust and environmental damage, and its waterproof ability. The outer layer is produced from a naturally occurring zinc metal that provides a smooth finish with extended durability while also being 100% recyclable and meeting environmental requirements. Additionally, the panel is the ideal building material for structures where there is a balance between environmental responsibility and low maintenance.
Zinc Composite Panels display three main features that enable their repeated use while maintaining full product quality after multiple applications. The roofing material provides sustainable benefits because its extended lifespan and erosion resistance help reduce both material waste and maintenance requirements, which support long-term artistic performance objectives and green building standards.
Zinc Composite Panels show the capability to be reused numerous times without sacrificing the full understanding of environmental protection and quality of products. The roofing material provides a sustainable performance product that contributes to achieving sustainability goals (through the life of the roof and resistance to corrosion) and meets all environmental building standards.
